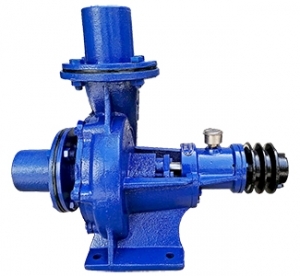

CENTRIFUGAL PUMP = W09200 / W09300 / W09400 / W09500 / W09600 ....
Special mechanical seal.- Chrome-nickel steel AISI 316 pump-shaft.- Higher or lower liquid or ambient temperatures.- Other motor protection.- Explosion
proof construction in accordance with Directive94/9 EEC (ATEX).- Motor for other voltage.
proof construction in accordance with Directive94/9 EEC (ATEX).- Motor for other voltage.
|
|
Features :
Single Stage and suction centrifugal pump with bearing bracket. Nominal duty
points and main dimension in accordance with EN-733 (DIN 24255) Back pull
out construction for simple and dismantle and reassemble quickly.
Usage :
Special mechanical seal.- Chrome-nickel steel AISI 316 pump-shaft.- Higher
or lower liquid or ambient temperatures.- Other motor protection.- Explosion
proof construction in accordance with Directive94/9 EEC (ATEX).- Motor for
other voltage.
Specification :
Single Stage and suction centrifugal pump with bearing bracket. Nominal duty
points and main dimension in accordance with EN-733 (DIN 24255) Back pull
out construction for simple and dismantle and reassemble quickly.
Usage :
Special mechanical seal.- Chrome-nickel steel AISI 316 pump-shaft.- Higher
or lower liquid or ambient temperatures.- Other motor protection.- Explosion
proof construction in accordance with Directive94/9 EEC (ATEX).- Motor for
other voltage.
Specification :
| 產品編號 | 馬力 | 口徑 | 轉速 | 最佳深度 | 最高揚水 | 水平輸送距離 |
| Product # | POWER(HP) | BORE(INCH) | RPM | WELL DEPTH(M) | TOTAL HEAD(M) | LEVEL DELIVERY DISTANCE(M) |
|
W09200 W09300 |
3 | 2" | 1500 | 6 | 8~12 | 101 |
|
W09400 W09500 |
5 | 3" | 1500 | 6 | 8~12 | 240 |
|
W09600 W09700 |
5~7-1/2 | 4" | 1200~1500 | 6 | 8~11 | 330 |
| W09800 | 7-1/2~10 | 5" | 1300~1400 | 6 | 8~11 | 400 |
| W09900 | 10~15 | 6" | 1500 | 6 | 8~12 | 500 |
